Portal Frame Steel Structures

Portal Frame Steel Structures (commonly designed as Pre-Engineered Buildings - PEB) are single-story rigid structural framing systems composed of vertical columns and sloped rafter beams joined by moment-resisting rigid knee and ridge connections.By using variable-section (tapered) steel members that match the internal bending moment distribution along the frame, portal structures are the world’s most widely used solution for industrial warehouses, logistics hubs, manufacturing factories, agricultural sheds, and commercial retail parks.

1. Maximum Cost-Efficiency & Low Tonnage per Square Meter Variable-Section (Tapered) Efficiency: Tapered columns and rafters place steel mass precisely where bending moments are highest (at knee and ridge joints) and slim down where internal stresses are minimal. Lowest Cost Per Square Meter: Optimizes raw material usage to deliver the most economical steel tonnage per square meter among all single-story building systems.

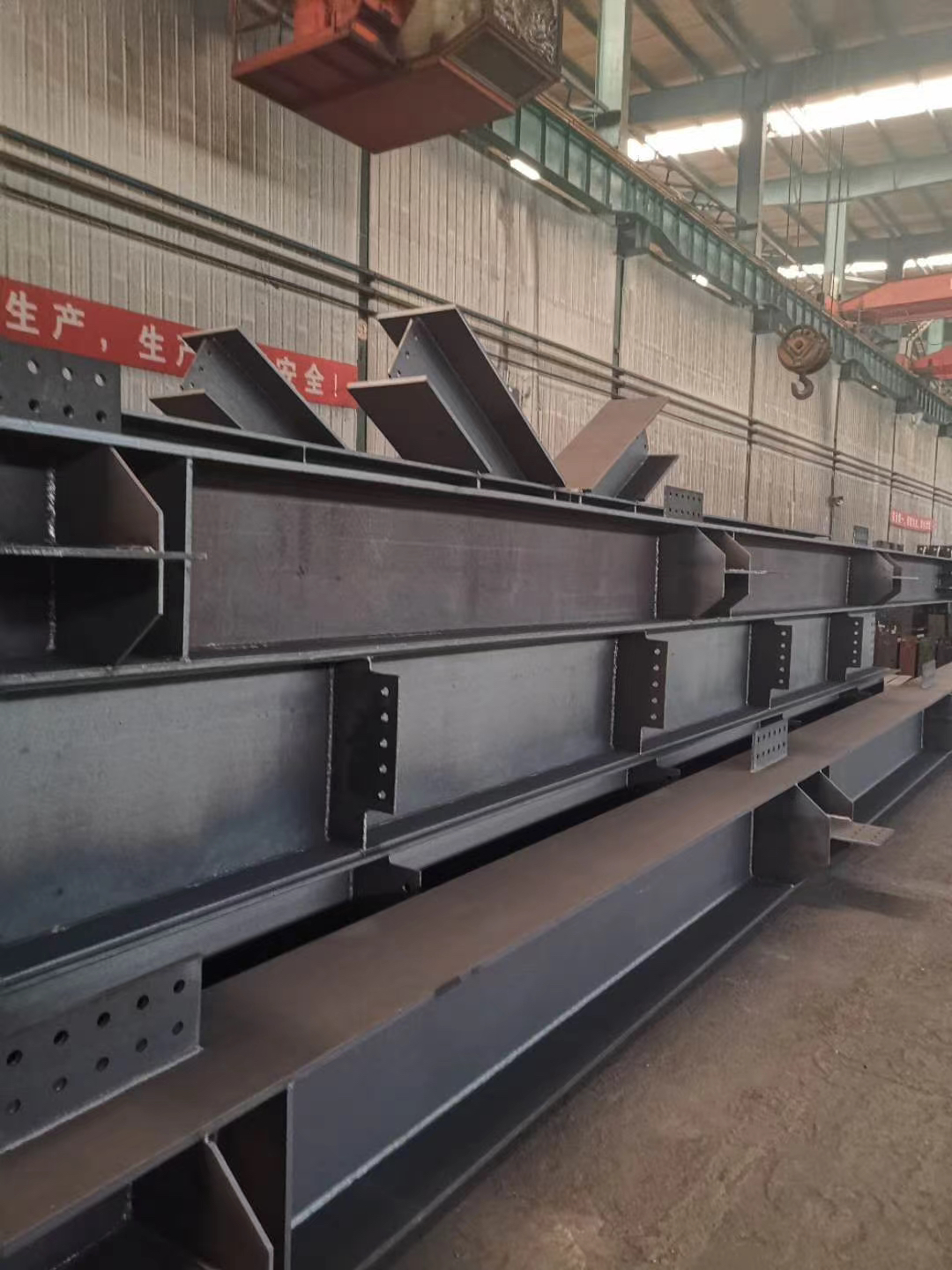

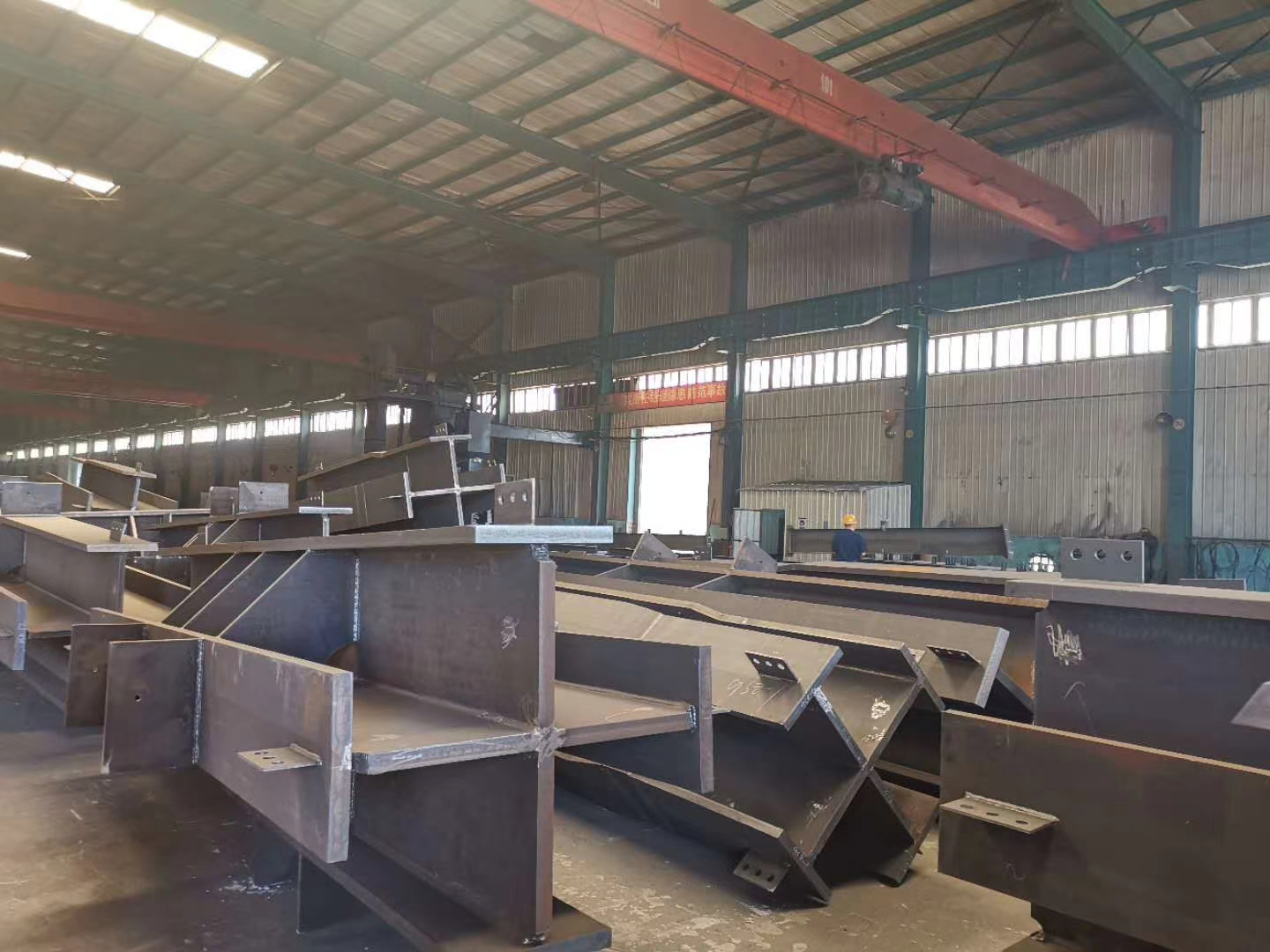

2. Pre-Engineered Building (PEB) Speed & Rapid Erection Factory Prefabrication: Columns, rafters, secondary C/Z purlins, and girts are precision-manufactured off-site with pre-punched bolt holes. 100% Bolted Site Assembly: Minimizes or eliminates on-site welding, resulting in exceptionally fast installation, lower field labor costs, and faster project commissioning.

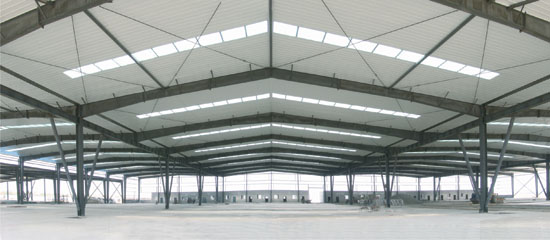

3. Unobstructed Column-Free Clear-Span Interiors Maximizing Operational Space: Effortlessly provides continuous clear spans ranging from 18 to 36+ meters (and up to 60+ meters with specialized design) without internal supporting columns. Optimized Logistics Layouts: Provides unhindered floor space for high-density pallet racking, continuous automated production lines, and heavy forklift maneuvering.

4. Light Dead Weight & Reduced Foundation Costs Minimal Foundation Loads: The low structural self-weight transfers significantly lighter loads to the substructure compared to conventional concrete frames. Earthwork Savings: Reduces concrete footprint and footing depth requirements, substantially cutting foundation construction time and material costs.

5. Seamless Expansion & High Cladding Compatibility Effortless Longitudinal Expansion: The modular, repetitive bay design allows factories and logistics centers to be expanded longitudinally with minimal disruption to ongoing operations. Versatile Building Envelope: Seamlessly integrates with insulated metal sandwich panels, standing-seam roofing, side cladding, translucent daylighting strips, and ventilation systems.

6. Excellent Weather Resistance & High Recyclability Cold-Formed Galvanized Components: Secondary members (C/Z purlins) are typically hot-dip galvanized to resist moisture and industrial corrosion. Sustainable Life-Cycle: Highly resilient against wind uplift and snow loads, while offering 100% steel recyclability and high residual value at the end of the building's operational lifespan.
